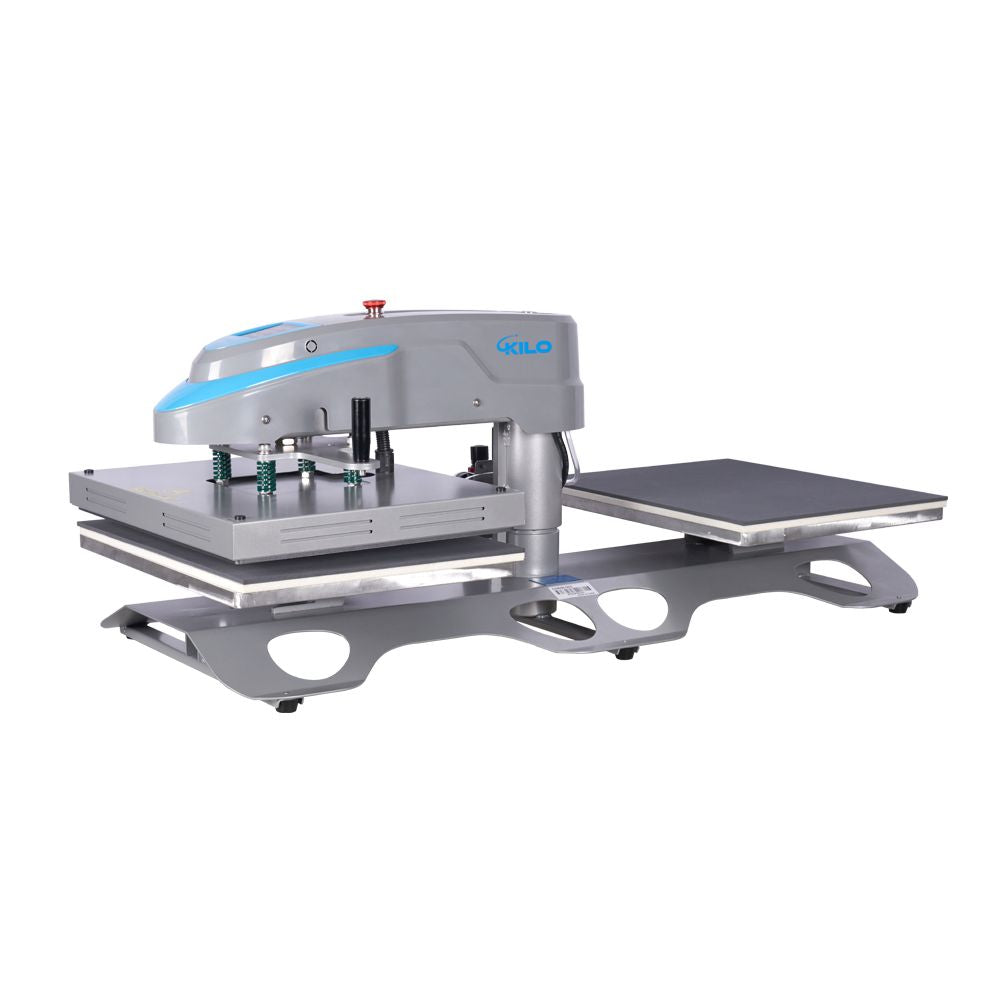

16x20 Pneumatic Dual Platen Swing Head Heat Press Machine 110V,2000W
- $1,370.15
- $1,370.15
- Unit price
- per
Couldn't load pickup availability
Ready to ship
All products at Haul Days that are in stock are ready to ship.
Dispatch: typically within 1–3 business days (Mon–Fri). You’ll receive tracking as soon as your order is on the way.
Shipping — quick summary
Free standard shipping on all orders within the United States.
Processing: 1–3 business days (Mon–Fri).
Delivery: typically 5–7 business days after processing.
Tracking: we email a tracking link when your order ships (also available on our tracking page).
Multiple packages: items may ship separately; each package will have its own tracking number.
Addresses: please verify your address at checkout; contact us ASAP for changes (not guaranteed once processing begins).
Returns & refunds — quick summary
Issue-based returns within 30 days of delivery. Eligible reasons include damaged on arrival, wrong item, not as described, quality defect, or missing parts.
Change-of-mind: not accepted. Exchanges: not offered.
What we’ll need: photos/video of the issue, plus the shipping label, SKU/Item No. on the package, and the outer carton. Please keep all packaging until resolved.
Returns (if required): we’ll provide an RMA and the designated warehouse return address. Return shipping is the customer’s responsibility. Please ship within 7 days of approval so we can process your resolution without delays.
Transit issues: shipments with no movement for 15 business days are reviewed via a carrier/warehouse claim; refunds or replacements follow the claim outcome.
Warranty: no separate manufacturer/commercial warranty is provided.
Product description
What to know
Specification
Main Color:Blue+Grey
Main Material:Aluminium
LTL:Yes
Details
Product Features:
1. Multiple time settings heat press machine
2. Bright, large LCD wide a wide viewing angle heat press machine
3. Heat press machine with self-pressure balancing system
4. Teflon surface sprayed with theT-shirts heat press machine upper plate
5. Using swing head position limit magnetic sensor, the machine head rotates to zero position
6. The pneumatic heat press machine automatically press downward with air pressure
7. The heat press machine powered by an air compressor ( not included)
Description:
<divstyle="font-size: 16px;="" font-weight:bold;line-height:24px;color:="" #333333;word-break:="" break-word;"="">Double-station 16X20'' Pneumatic Heat Press Machine</divstyle="font-size:>
1. Heat press machine is full digital integrated display control;2. High accuracy of signal indication when press process is completed;3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;4. Heat press machine pressure can be adjusted up to 8kg/cm², It adopts connected track which is stable and convenient for sliding, with high efficiency; 5. Teflon surface covered with the heating plate6. Heat press machine for lifetime factory on-line service7. Lower plate covered with 6MM silicon mat and 1CM sponge to heat even heating pressure 8. Heat press machine using swing head position limit magnetic sendor is automatically press down when the machine head rotates to zero position9. Left and right side bearings parallelly move the heat press machine10. Generally pressure for 0.4Mpa-0.6Mpa heat printing
<divstyle="font-size: 16px;="" font-weight:bold;line-height:24px;color:="" #333333;word-break:="" break-word;"="">Swing-Head Heat Press Machine with Optional Infrared Positioning</divstyle="font-size:>
1. Pneumatic heat press transfer machine makes machine more convenient for printing;2. Heat printing machine with optional infrared positioning is more accurate for small items printing;3. Heat press machine powered by an air compressor ( not included);4. Heat press machine improved lower support plate makes it more convenient to input finished clothes5. Heat press machine for 6CM pressure adjustable arange process a wider range of products
Technical Details:
| Voltage(V): | 110V/60HZ |
| Power(KW): | 2 |
| Temperature(℃): | 0-299 |
| Delaying Time(S): | 1-99 |
| G.W.(LB): | 176.4 |
| Packing size(in''): | 51.2'' X 20.9'' X 23.6'' |
| Accept Thickness: | Max. 2.36'' Thick Item |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 16'' x 20'' (40 x 50cm) |
2
| Pure Cotton Time: | 15s-25s |
| Polyester Time: | 40s |
| Chemical Fiber Time: | 10s-40s |
| Pearl Board Time: | 60s-100s |
| Metal Pendant Time: | 60s |
| Mousepad Time: | 50s |
| Vitrolite Time: | 180s |
| Ceramics Time: | 180s |
Temperature requirements of different materials.
| Pure cotton | 356℉-428℉ (180℃-220℃) |
| Polyester | 356℉ (180℃) |
| Chemical fiber | 302℉-356℉ (150℃-180℃) |
| Pearl board | 356℉ (180℃) |
| Metal pendant | 356℉ (180℃) |
| Mousepad | 374℉ (190℃) |
| Vitrolite | 392℉ (200℃) |
| Key ring pendant | 356℉ (180℃) |
| Ceramics | 356℉-428℉ (180℃-220℃) |
